INTRODUCTION

The aim of sustainable urban development (SUD) is still vague due to the overlapping of some urban issues as well as the contradictions embedded in each one. Significant disputes have occurred among academics in regards to some urban issues (Hassan and Lee 2015); for instance, some academics advocate for containment whereas others are protagonists of urban sprawl; some think that physical form can create SUD whereas others oppose this idea, emphasizing instead on the relevance of human dimensions. This study therefore supposes that the conflicts involved in these issues may be a major obstacle against the potential implementation of scientific findings in real urban planning. The decision-maker, for instance, cannot adopt questionable findings derived from a dialectical issue and then implement such findings in the real world. Indeed, this would be a professional gamble if this were how business was conducted regularly.

In a previous study, we have reviewed ten issues related to urban planning and development (Hassan and Lee, 2015); however, in this study, we focus on the five most salient issues from a dialectical perspective. These issues are transportation, governance, urban form, urban growth, and urban vegetation. These issues have been chosen based on two factors. The first is that these issues have appeared superior among the ten issues addressed in the previous study, and the second is that the five issues are vigorously correlated with each other and encompass an evident controversy among academics. The relation between the urban form and transportation system is undeniable, and their consequences on urban sprawl and urban vegetation are equally as evident. In addition to these issues, social participation still struggles to greatly contribute to SUD.

This study aims to identify those urban issues that are shrouded by contradictions through a review of controversial issues, and to reveal the reasons that trigger conflict in each issue. Further, this study aims to identify the prominent issues that can first play the role of coordinator among the urban issues, then propel towards SUD. This study therefore attempts to find a compromise regarding the following controversial questions:

• What is a city? Is it a physical or social entity?

• Which kind of urban growth is better: containment or urban sprawl?

• What do urban residents really want: greater walkability or more automobility?

• Which is more sustainable: the green heart or the greenbelt?

• Is social engagement (governance) permissible before or after promoting educational awareness?

The structure of this study is divided into three major parts. After an introduction, we aim to provide globally applicable information on these five issues exclusively, highlighting some informative models related to each issue collected from different countries. This section is thus important in terms of identifying recent global concerns with the five issues. The second portion centers on the disputes on the five issues, and is thus complementary to the first section in that it specifically discusses the points of conflict among academics. Therefore, this chapter mirrors the potential problems that undermine SUD. Finally, the third part of this study aims to reveal a compromise for those clashes raised in the previous issues through logical proofs.

SALIENT ISSUES RELEVANT TO SUD

Five urban issues tangled together have been observed from a previous study that reviewed ten urban issues (Hassan and Lee, 2015). The ten themes can be classified both quantitatively and qualitatively as shown in Figures 3 and 4. The quantitative criterion is the maximum number of discussions on a specific issue, regardless of the study’s location (if the issue was mentioned in a specific country once, it would be counted as 1 discussion; if it was mentioned twice, it would be counted as 2). However, this criterion cannot indicate the prevalence of a certain challenge on a global scale; it merely provides information on local policy. In this chapter, we exclusively show the informative models relevant to these issues, and then articulate the global attention towards these issues.

Informative Models Relevant to the Five Topical Urban Issues

Table 1 shows some informative models related to the five urban issues. These models are considered to be an introduction to the dialectical debate, and they include lessons learned from specific regions and can thus contribute firsthand to planners who deal with similar regions. Therefore, Table 1 encompasses the zones of study, the discussed issues, the findings or limitations related to each case, and the dates of study.

Global Attention towards these Issues

Kerby (2013) argued that now is the time to take global urban society into consideration and rethink how we see cities, nations, and ourselves. Thus, this chapter attempts to broadly understand sustainable urban development.

Due to the current population explosion occurring in Asian countries such as China, India, and Bangladesh, concerns surrounding urban issues arguably greater in Asia than in other countries. By 2025, 16 out of 27 mega-cities, including more than 10 million people, will reside in Asia (Lehmann, 2010; Roy, 2009). Therefore, we can understand the results of Figure 1 which show the quantitative and qualitative superiority of Asian countries in regards to the five urban issues addressed. As Figure 2 illustrates, China is ranked the first among all Asian countries, whereas is ranked second.

Figure 1. The share of each continent with respect to issues of SUD according to papers survey

Figure 2. Asian countries and percentages of emergence in the survey sample (China has the greatest share followed by India, Indonesia, and Bangladesh)

As shown in Figure 3, transportation, governance, and educational consciousness are quantitative issues that are of the most significant concern in Asia, followed by issues of urban form, land use, and urban sprawl. It is worth mentioning that the arrangement of the quantitative issues may be slightly changed due to scope of review. As Figure 5 shows, governance and educational consciousness are considered to be the qualitative issues of greatest concern in Asia, followed by issues of transportation and urban sprawl. Recently, it was observed that Asian governments pay attention to cultural awareness and governance as effective tools that contribute to the transition into sustainable development (SD). Public awareness of governance and engaging human dimensions in the urban process are both promising in reconciling urban planning policy. Authorities often enact decisions without residents’ input, and thus the policy often cannot be carried out. In , for instance, the authorities imposed an embargo on private automobile use one business day per week, but the residents circumvented this decision by buying and utilizing other kinds of motor vehicles (Vallance et al., 2012). Eventually the policy failed because it was assigned without governance.

In addition to the rising trend in Asian cities toward urban sprawl, urban growth has not been able to alleviate the compactness inherited in most of these cities (Lehmann, 2013), and urban vegetation is not given the same concern as the attention paid to other issues as shown in Figures 3 and 4. This may be attributed to the paradox between the compactness trend and urban areas necessary for vegetative growth. Other countries differ from Asian countries in that there has been a revival of compact patterns that arise without compromising green areas. For example, in the case of Norway, 13 of its largest cities are subject to a rehabilitation process aiming at converting to more compact cities from 2008 to 2014 (Hofstad, 2012). Therefore, Asian cities may not have sufficient potential to solve that dialectic affair.

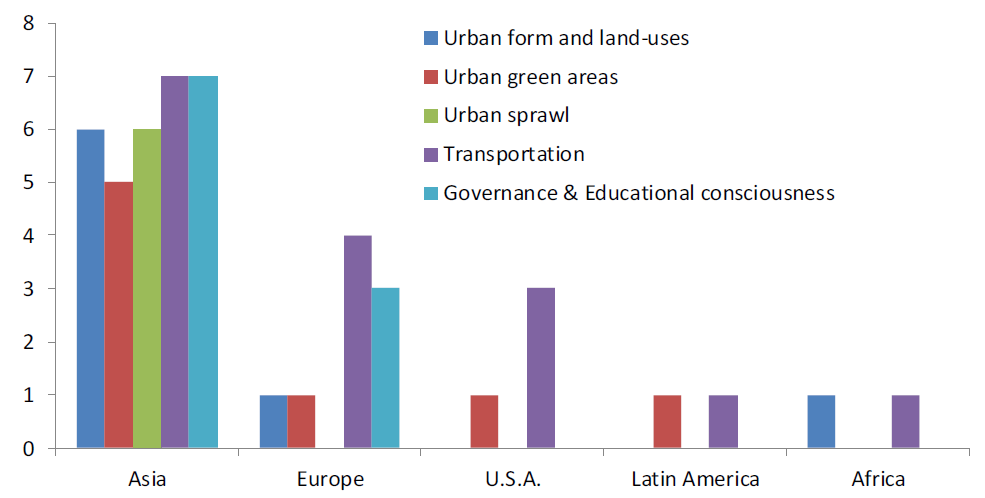

Figure 3. The quantitative gauge for the five topical issues raised by continents concerned with SD throughout the world (Transportation is the globally dominant issue)

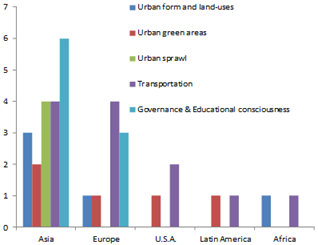

Figure 4. The qualitative gauge for the five topical issues raised by continents concerned with SD (Governance (social participation) and transportation issues are the salient global qualitative issues)

In Europe, the issue of transportation is given the most significant attention, followed by the issues of governance and educational consciousness as shown in Figures 3 and 4, while the other issues are insignificantly addressed. The relevance of social participation and promoting cultural awareness towards ecology and urbanism has gained consensus and become an important question in both Asia and Europe. The transportation issue is given significant attention in America and , while the issue of urban green areas is ranked second. This may be attributed to the obesity rate, which has increased in . However, SD is a place-dependent concept (Pow and Neo, 2013). In Latin America and Africa, the importance of transportation has drawn a great deal of attention, but there is no prominent urban issue as shown in Figures 3 and 4.

Dialectical Points Related to the Five Issues

The paradox included in the scientific debates surrounding these issues may prove to be a major barrier against transition to SUD. Those responsible for decision-making and enacting change may be hesitant towards controversial issues surrounding SUD, and thus the channel linked between scientific research and urban planning development will be blocked because of the contradictions of academics and theorists. Following, we highlight some of the controversies relevant to the five urban issues.

Urban Form: Physical versus Sociocultural

Hall (1988) proclaimed that the city is an apparent physical fact. It is formed through the relation between the edge and the center, the activities spaces and movement spaces, and the built areas and open green areas (Chapin, 1965). However, Bridge and Watson (2000) argued that the cities are the positive outcome of imagination, affecting the ability to imagine, and as such, if the city enhances only material relations, the imagination derived from it will be physical, and thus human values will vanish and the city will lose its appeal.

Neuman (2005) professed that urban form is the production of a two-way process, the structure that shapes process and, at the same time, the structure that emerges from that process. Therefore, if the urban form is manipulated as a physical form exclusively, it will no longer be capable of keeping up with social and political changes (Bonnes et al., 2007; Soneryd, 2004). A city’s form alters due to changes in, for example, political systems and demographic structures. For example, the compact socialist cities located in East-Central Europe are no longer compact as they began to rapidly sprawl after the fall of socialism (Hirt, 2013). On the other hand, some cities in advanced capitalist countries are shrinking due to the steady decrease in number of residents resulting from declining birth rates and increased immigration to larger cities. Indeed, shrinkage rates are expected to accelerate in the near future (Grobmann et al., 2013). We can argue that the master plan of any city, which produces the first physical form, will be followed by several plans that will be controlled by the emerging political, sociocultural conditions. Thus, decision-makers should prepare a sustainable plan (namely, a flexible plan with different green alternatives for urban planning) and policies to deal with the changeable conditions that have recently come about.

In his book “Sustainable Urban Design: the Next Step” Meijer et al. (2011) suggested that a sustainable city form requires good land use allocation through residents' participation in the spatial development. The use of underground spaces can facilitate the circulation and accessibility of a compact pattern. However, further tools are needed to help determine the ideal land use, and to determine the best way to create sustainability. In response to this need, Roy (2009) developed the DMDPSS software based on GIS and MS access database to determine how to promote sustainable urbanization in the rapidly growing city of Dhaka in . The favorable and simple interface of this software helps residents allot land to varied uses of land. As evidenced in this case, effective participation is thus necessary in sustainable spatial development. In this context, Castells (1983) professed that the city is the physical foundation of most human expertise. If the current experience has been formed autonomously, the corollary would be a selfish city that would essentially serve the elite regardless of any other dimensions. Meijer et al. (2011) agree with Neumann (2005) that although physical form can partially create sustainable urbanism, it can never form it completely.

Urban Growth: Defining Urban Sprawl

Unlike the notion that urban growth is related to population growth, urban sprawl is considered an anomalous base. The total built-up area growth of Italy and , for instance, will increase by 0.5% from 2000 to 2050, despite the fact that the population in each country will remain constant during the same period (OECD, 2012). On the other hand, some countries, such as South Korea, Japan, Portugal, Slovenia, the Slovak Republic, Hungary, and Germany, will witness an increase in the total built-up area, with ratios ranging from 0.1% to 0.8% from 2000 to 2050 despite a population decrease during the same period (OECD, 2012) (Figure 5). This simply means that urban growth is based neither on the population increase, nor retardation.

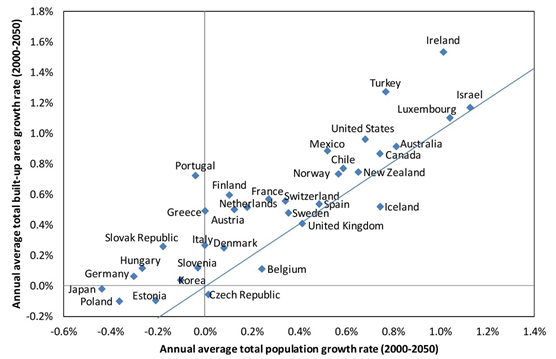

Figure 5. Comparison of population and the built-up area’s growth rate by OECD countries between 2000 and 2050 (OECD, 2012)

One of the most dialectical obstacles that decision-makers face when they deal with urban sprawl is that there is no precise definition for urban sprawl, nor any precise method of measuring it. Its definition as redundant urban growth (Brueckner, 2001), urban sprawl is not clear in cases of steadily increasing populations, such as in Ireland and (see Figure 5).

Urban sprawl has also been defined as a phenomenon of low density which is related to population and buildings (El-Nasser and Overberg, 2001; Lopez and Hynes, 2003). However, this definition is not applicable in communities that are dependent on dispersed urban policy, such as in the case of American family dwellings. There is a third definition that characterizes urban growth according to three qualities: population dispersed in low-density areas, vigorously detached buildings, and urban forms beyond outskirts (Schneider and Woodcook, 2008). This definition also faces the previously mentioned criticisms, however. In fact, the controversial perspectives on the meaning of urban sprawl are considered one of the challenges against remedying urban planning development. We suggest that urban sprawl is a phenomena created by psychological, sociocultural, and economic motifs that are rendered by some residents when the city loses its vibrancy. It mostly appears in outskirts and fringes, but sometimes it emerges inside the city itself when residents immigrate to other places when the city becomes unappealing to residents, such as in the case of shrunken or dead cities, for example.

Unlike urban sprawl, compactness has been revived in order to protect arable countryside lands (Mclaren, 1992) and enhance the environmental condition after the 1970s energy crisis through supporting public transportation and protecting road infrastructure (Meadows et al., 1972). The compact pattern has been adopted in Holland from 1970 to 2000, and Geurs and Wee (2006) argued that this policy helped the to decrease urban sprawl and dependence on automobiles, therefore contributing to reducing environmental emissions, noise levels, and social segregation. Another example is that of the residential or working compounds assembled around public transportation nodes in Hague, which decreased transportation volume during the rush hours from 5% to 10% (Ministry of Transportation, Public Works and Water Management, 1990).

In 1990, the UK adopted the compact pattern as a strategy for SUD (Commission of the European communities, 1990). ECOTEC (1993) conducted a study that assessed the relation between population density and the fuel consumed by transportation. The study concluded that the consumption of fuel reduces with the increase of population density, and further that American cities consume double the amount of fuel consumed by Australian cities, and four times more than European cities (Newman and Kenworthy, 1989a, 1989b). As a result, public outcry in the called for compactness, and this new advocacy became known by many different names such as transit-oriented development and neo-traditional developments (Handy, 1992). Katz (1994) believed that containment encourages residents to strengthen social relations among communities, and critics of zoning and suburbs agree with Katz regarding this question (Duany et al., 2001; Krier, 1998). Holden and Norland (2005) carried out a survey on eight residential zones in , which revealed that the policy of containment referred to as the “new inner city” is considered more sustainable than urban sprawl.

Though there are advantages of compactness, the trend of containment is still a dialectical issue. Breheny (1995) evaluated the energy consumed in compact and dispersed zones, and found that the energy saved through compacted developments is very limited. Furthermore, the relation between high population density and decreasing travel has not yet been resolved (Breheny, 1992; Hall, 2001); Ewing (1997) proclaimed that no relationship exists between high population density and lessening driving. Bouwman (2000) added that highly populated areas do not trigger the reduction of transportation fuel, and the reduction rate did not exceed 5% among different urban patterns. Further, an empirical study conducted by Wirth (1938) to identify the influence of high population density on individual behaviors led Wirth to argue that a high population density causes psychological pressures on residents, and negatively impacts their relationships. Further, Garcia and Riera (2003) indicated that the vitality and wellbeing in the less compact developments is better than the areas that are highly compact.

From our view, the arguments supporting and opposing compactness reveal the essence of the issue. All theorists have built their views on material factors such as consumption of fuel, population density, and amount of travel. Therefore, the contradictions apparent in the results are the corollary of ignoring sociocultural factors as a major determinant able to form a sustainable pattern of urban growth. The resident living in a highly populated area who works far from home suffers greatly through daily transportation, traffic congestion, pollution, and time loss, to name a few. Hence, we could understand compactness as a comprehensive pattern beginning with the individual resident and ending with the physical urban assets.

Transportation: Automobility or Walkability

‘‘Sometimes city roads are paved to hell’’

- Glaeser, 2011, p. 2

Transportation has had a significant impact on city form and energy; however, some sectors consume energy more than transportation. Buildings in the in 1950, for instance, consumed 38% of energy, whereas transportation consumed 27 percent. This issue has been resolved by Weigel (2014), who has applied a calculation framework based on data from simulation and travel demand models to evaluate the prospects of transportation and building energy consumption of commercial office buildings/sites in , . Weigel found that transportation is a major factor of the energy performance in commercial office buildings/sites. The potential of energy efficiency in urban transport is much higher than in buildings. For example, the strategy adopted to reserve energy in Agua Braca, gives priority to achieve it through the transportation sector (Marins and Roméro, 2013). Therefore, we can understand that the potential to save energy through changes to the transportation sector is very promising.

Academics split up into two teams regarding the transition to sustainable transportation. The first group calls for boosting the physical system of transportation such as vehicle conditions, road infrastructures, and traffic laws and taxes. The other group is more concerned with passive changes such as encouraging walkability or non-motorized vehicles. The opposition of the two sides is considered a dialectical issue and has not been resolved because it is vigorously tangled with the two issues previously mentioned: urban growth and urban form.

Regarding the first team, Dirgahayani and Nakamura (2012) stated that the Japanese initiative of the urban mobility “omnibus” established in Matsuyama could be an effective transport means if it is implemented in highly populated cities such as , . Thus, success of the “omnibus” as a physical transport tool depends on population density, and the urban form with sociocultural characteristics is a major parameter in this initiative.

Delucchi and Kurani (2014) argued that economic, environmental, and social urban problems are not firsthand results of automobility or suburbs per se, but are instead consequences of using heavy-motor vehicles and high kinetic energy. Delucchi and Kurani (2014) suggested the creation of an urban settlement with a new transportation infrastructure based on the design of two citywide, independent travel networks. The first path will serve the heavy-motor vehicles with high kinetic energy, while the second will be assigned to the low-speed transportation means. As this infrastructure may provide a sustainable transport system, Delucchi and Kurani suggest that physical solutions may propel a sustainable transportation system and contribute to solving the problem of urban sprawl.

In , Colmenar-Santos et al. (2013) recorded the consumption of oil by the transportation sector. They compared the cost of oil consumption with the cost of electric power consumption for private and public vehicles used on Spanish streets, and found that electric vehicles have a lower cost of energy consumption and are environmentally cleaner than oil-based vehicles from the comprehensive economic view relevant to ecological aspects. In an oil-rich country such as , a repressive method has been adopted to decrease fuel consumption through raising fuel costs for personal transportation systems and improving the bus rapid transit and subway (Shakibaei et al., 2011). We suggest that the policy adopted by cannot undermine the dependence on private cars, and further that the rising cost of fuel is not a consideration for people who possess automobiles. In the same vein, Abdallah et al. (2013) have criticized Tunisian policies that promote extra investment in road networks and that create a cordon of taxes to confront traffic congestion, declaring that these policies only provide temporary relief.

Regarding the second team concerned with making more subtle changes through passive techniques, the sustainable transportation strategies in , for example, have been assessed through an analytical hierarchy process using the Dempster-Shafer theory. Shiau (2012) proclaimed that encouraging the use of biodiesel and non-motorized modes are considered preferable transport strategies in . The non-motorized transport systems are preferred in the personal commuting and transport of commodities of micro-enterprises, and thus a tricycle, for instance, is considered the most adaptable vehicle for short-haul transportation. It is environmentally cleaner, safer, quieter, and more compatible with many micro-enterprises in . Norcliffe (2011) believes that depending on tricycles can reduce problems of over-reliance on rapid mobility. Tunisian scholars also emphasized that the use of non-motorized transport means are strongly required, especially after the dramatic increase in the number of motorized vehicles and their negative impacts on the economy and environment (Abdallah et al., 2013; Al-Hinti et al., 2007).

While many studies suggest the use of bicycles as a light means of transportation, Passafaro et al. (2014) suggested that peoples’ emotional barriers need to be removed first, before asking them to use cycles. Passafaro found that residents’ attitudes vary when it comes to bicycle-riding as a means of commuting. While some residents are fearful of the risk of accidents, others prefer cycling for utilitarian reasons such as low economic cost and the potential to improve physical fitness. Some consider that riding bikes promotes a sense of freedom, beauty, and psychological wellbeing. Therefore, before depending on this mode of transport, social and emotional barriers need to be addressed carefully. Eventually, we would argue that automobility is neither made up of physical equipment, nor limited to human factors (drivers and users). Instead, automobility is a hybrid system, and should be addressed according to its two components. Therefore, urban policies related to transportation will not succeed if the related sociocultural dimensions are denied.

Urban Vegetation: Greenbelt or Green Heart

Yang et al. (2012) suggested that the lack of greenbelts around , in addition to the overconcentration of urban activities in its center, induces residents to travel longer and create dispersed suburbs that lack nodal characteristics and thus cause urban sprawl. Therefore, the greenbelt acts as a safe zone for the city, working as a psychological breath of fresh air for residents, facilitating and contributing to the reduction of urban sprawl.

Kuhn (2003) addressed the impact of the greenbelt and green heart as a landscape component in the regional city. He illustrated a greenbelt adapted with a monocentric city, where the urban areas located in the city are separated from the rural areas around them. Meanwhile, the green heart complies with a polycentric city, and connects urban and rural areas. Therefore, the greenbelt and green heart play the role of either separator or connector in urban planning. The question that naturally follows is which of the two patterns is more sustainable for urban planning and development?

Nagendra et al. (2012) answered this question indirectly: they recorded the changes of vegetation for Bangalore City, located in southern , by analyzing the satellite images during the period from 2000 to 2007. They found that in the core of , the vegetation areas had been preserved because this area was owned by the British military. On the other hand, the peripheral areas were vulnerable to urban growth and thus there was a lack of vegetation. Therefore, the provision of green centers appears to be more sustainable than that of greenbelts, as the latter will inevitably conflict with the chaos of urban growth. The green heart has the added contribution of keeping the city appealing, providing urban residents with social spaces for their activities, and thereby reducing travel outside of the local area (Chiesura, 2004). Green hearts also provide shade in hot, arid areas, mitigate air contaminants, decrease the effect of urban heat, reduce noise, increase urban biodiversity, and enrich aesthetic values throughout the urban environment (Chaturvedi et al., 2013; Vos et al., 2013).

On the other hand, some people may believe that there is a reason to be concerned with the greeneries on the fringes of cities rather than centers. However, we should review the history of margins of cities before professing this belief. Some fringes were originally forests, upon which urban growth has encroached. Therefore, the attention of urban vegetation may be understood in these regions, as was the case in the Atibaia region in , (Sperandelli et al., 2013).

Governance: Pre-education or Post-education

“Governance refers to any social mode of co-ordination in which the aim is to control, guide or facilitate economic and social activities distributed across the landscape, including activities involved in transforming nature” - Jonas and While, 2005, p. 73

Social participation in decision-making is one of the dialectical issues in urban development, and some planners and decision-makers consider the residents unqualified to make good decisions in urban development, especially in developing countries. In the countries involved in the Arab Spring, for instance, the political elite argued that people were not well-educated or able to determine their own fate. This was taken as pretext and used as a political umbrella for a coup against the elected regime in . Thus, the view of public participation can become somewhat clouded by controversy.

An increase in educational consciousness may be an approach toward sustainable urbanism. Dimitrova (2014) alluded to the need to teach sustainable policies and tools in higher education curriculum. After 10 years of incorporating sustainable design in the curricula in , the researcher observed an improvement in teachers’ experiences and students’ mindsets.

Latif et al. (2013) attempted to measure inhabitants’ concerns about the recycling process. To facilitate this, Latif et al. (2013) applied the theory of reasoned action in a survey of 255 residents of Kuala-Lumpur. They found that the educational level of residents is an effective factor for implementing sustainability. However, educational consciousness cannot be promoted without the participation of community members in management, as this is what guarantees the success of urban policies (Jansson and Lindgren, 2012). In , an investigation has been conducted on 198 participants to identify the challenges of sustainable development and to determine methods for their resolution. The results showed that direct participation of residents is more feasible towards the SD than the promotion of individual behaviors (Salonen and Ahlberg, 2013).

Practically, social engagement in urban development has enhanced Tianzifang’s residents in to regenerate their area sustainably based on self-financed, self-organized community participation. Governance occurred in this region through the participation of unprofessional residents, and produced positive results among sociocultural, economic, and environmental aspects, such as enriching the sense of place, raising the quality of life, and increasing the quality of social relationships and cohesion (Yung et al., 2014). Urban planners should admit that physical environment alone cannot create a sense of community (Talen, 2000), and should rather attempt to trust in residents’ abilities of promoting sustainable urbanism. Even if residents faltered in implementing change, they would cope with the results of their options and learn from the outcomes of their failures,

Cities severely need to promote the level of trust among their residents as an introductory approach to governance. Jabreen and Garmon (2010) conducted 973 personal interviews in residents’ homes in Gaza, Palestine to measure social sustainability, and found that trusting relationships are a major pillar to building a sustainable community in , despite that the human conditions there are considered among the worst in the world.

A survey based on interviews, questionnaires, and field observations was carried out on the coastal area of the Zouk Mosbeh zone in to achieve a sustainable rehabilitation. The study found that sustainable development is more likely to occur when people actively participate in the redevelopment process. For example, in Zouk Mosbeh, the predicted mean vote contributes to the evaluation of the thermal comfort in the redeveloped areas (El-Asmar and Taki, 2014).

No matter the circumstance, the question of educational consciousness is not significant, whether it takes place before, or after, governance. Educational promotion should be the main concern, at the forefront of issues related to SUD.

COMPROMISES FOR THE DIALECTICAL ISSUES

As previously discussed, five critical urban issues involve significant debates, and the controversy surrounding these issues may have caused the loss of direction toward SUD. Following, we attempt to resolve these arguments logically.

Sustainable Urban Form: A Physical or Sociocultural Driver?

The potential to create a sustainable urban form through only physical alterations is a fallacy, because the urban environment has been proven to involve human activities. Therefore, if the human dimensions were not taken into consideration in urban planning trials, these trials would miss the mark eventually. In Egypt, for example, when the prominent architect Hassan Fathy planned the village of Gourna in Luxor (south of ), he utilized domes as rooftops of dwellings as a thermal technique. Though the domes contributed creating thermal comfort, however, the residents refused to reside in Fathy’s village. At the time, the people of Gourna believed that domes were designated exclusively to cover tombs. This fact was not taken into consideration by Fathy, and the village became a ruin due to neglecting this important sociocultural factor.

Though identification of sociocultural characteristics is an important factor in urban form, it is extremely difficult to address all or most of the human dimensions in urban planning due to diversity of aspirations, cultures, and social structures. Thus, the fulfillment of sociocultural requirements requires a flexible physical framework for the urban planning (see Formula 1). In this manner, such resilience caters to present circumstances, and will be able to address future needs. Flexibility of urban policies requires the enhancement of trust and public engagement in management in order to formulate a public consciousness that will remain immune to current and future challenges. Further, such flexibility will help foster acceptance of and adaptation to new urban policies in addition to contributing to the success of those policies.

Urban Growth: Sprawled or Compacted?

At first glance, many academics and planners believe that the reason behind conflict between containment and sprawl is only physical. However, we propose that the essence of this conflict is derived from neglecting human factors. Traditionally, most common planners premised that the resident is a static object, not typically changing socially, culturally, economically, or psychologically. For example, an elementary school was allocated as a service for residents living in the neighborhood to enable containment. In such a situation, the planners would consider all residents to have the same sociocultural characteristics, aspirations, and plans for the future, even if they were economically equal. However, residents would attempt to place their children in a specific educational school according to their aspirations. As a result, an array of schools, such as public and private, domestic and international, and local and language schools have been established to fulfill residents’ needs. In such a case, the resident may then live in a neighborhood separate from that in which his or her child receives an education. Neglect of human changes—considering the resident as a static object in the city—results in sprawl, and even the urban form is thereby physically compacted.

The influence of human changes on urban growth has been disregarded in academics’ debates. In current urban planning, for instance, the resident may reside in a compacted area separate from his or her workplace, shop in a third district, and spend leisure time in the countryside. In fact, this resident lives in a compacted zone, but he or she does not enjoy the advantages of containment. The resident living in the suburbs may behave inversely, perhaps working in a downtown area, using an automobile daily and causing pollution, traffic congestion, high noise levels, and traffic accidents. This resident probably shops occasionally at the center of the city, or may simply desire to spend spare time in the city center.

The real meaning of compactness is missed in modern developments, despite its existence in the traditional developments of the past. This may be attributed to the absolute freedom provided by the automobile, in addition to the inequality of distribution of urban facilities (see Formula 2). Genuine compactness can be reached through restructuring the relation between the living places and workplaces based on equity of urban facilities.

Transportation: Automobility or Walkability?

Undoubtedly, walkability is more sustainable than automobility; however, dependence on motorized vehicles may be attributed to long destinations and urban sprawl, and may also refer to sociocultural needs. Figure 6 illustrates these needs by observing to what extent people depend on the cars in their life through a survey of a sample of city settlers (Multiguide, 2013).

If we therefore aspire to enhance the dependence of non-motorized transportation methods or walkability, we must remedy two issues. The first issue regards how to reduce the commuting distances from and to workplaces. This issue is related to urban land-use policies, and cannot be resolved without social participation in management. The second issue is tackling the psychological barriers of utilizing non-motorized transportation methods, especially the sociocultural aspects as revealed in Formula 3.

Urban Vegetation: Green Heart or Greenbelt?

The struggle between the green heart and greenbelt has emerged since the phenomena of urban sprawl. Undoubtedly, urban form determines the location and volume of urban vegetation. The relationship between a green heart and greenbelt is integrative, and not necessarily contradictory. The green heart is the gift of nature to the artificial city, the shelter where urban residents go to get rid of daily life stresses, and an air purifier and thermal urban modifier, especially in hot, arid regions.

The greenbelt is considered a buffer zone between the natural and the built environment, protecting the city from harsh weather. The greenbelt is the closest thing to a natural haven for urban residents, allowing them to escape from the built urban masses where they spend free time seasonally. It may also act as a defense area to absorb the slight urban sprawl in cases where the city population increases.

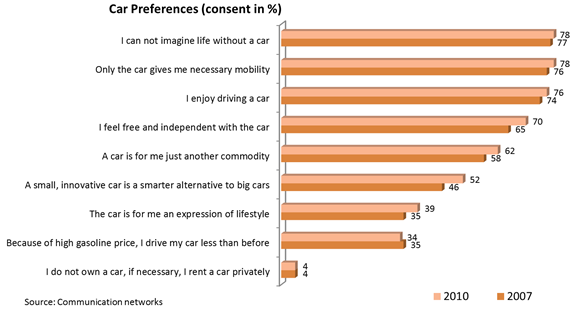

Figure 6. The average ratio of people who prefer cars, and their feelings toward their preferences (Multiguide, 2013)

Therefore, if we really need to protect the greenbelt, urban policies should ensure the equal distribution of urban vegetation in addition to ensuring the efficiency of urban greeneries. Given the absence of equity and efficiency of urban vegetation within the city, some urban residents will inevitably infringe upon the greenbelt and may spill over to the countryside (see Formula 4).

Governance: Before or After Educational Awareness?

The philosophy of social participation emerged from J. N. Habraken in 1961. Habraken stated in his thesis “Supports: An Alternative to Mass Housing” that individuals must engage in the urban process to guarantee its success, and the planner and local authorities should abandon their classic role in urban guardianship and give the urban residents an opportunity to plan their built environment according to their visions. Although there are numerous calls for governance, many of the dictatorial regimes throughout the world still fight against social engagement in “governance” management. The lack of cultural maturity has been taken as a pretext to compel residents to abandon governance. However, real urban experiences have proved that social participation in making public decisions triggers sustainable urbanism. Today, the urban policy of governance has been adopted significantly by some countries, notably those with democratic systems. Therefore, governance is not related to educational consciousness as much as it is considered a public right for individuals to form their own spaces.

Undoubtedly, educational awareness improves individual skills; however, real practice is the closest way to enhance urban culture. Even if residents make wrong decisions, they can accept the results of their choices and try to modify the outcome. In this way, they would obtain knowledge and learn how to repair deficiencies. Therefore, governance before and after educational awareness is administered yields almost the same results (see Formulas 5–8).

CONCLUSION

The tangle among urban form, urban growth, urban vegetation, transportation, and “social participation” or governance appears complicated. However, there are two master issues that may resolve the controversies among these issues. Specifically, these issues are governance and transportation.

Governance or social participation in urban management is the major coordinator among the other urban issues. Sustainable urbanism cannot be achieved in any issue without recruiting social engagement, or at least understanding sociocultural dimensions. The physical urban form needs a human touch through governance in order to thrive to become a beautifully constructed environment. Rapid urban sprawl Therefore, we can understand that the potential to save energy through changes to the transportation sector is very promising can also be tackled through social equity and participation. Some residents rush to fringes to build their own environment when authorities prohibit them from doing so within the city; lack of equality also causes such sprawl. Sustainable transport policies cannot be successful unless the many sociocultural and psychological barriers are taken into consideration.

Urban vegetation is for a reflection of the relationship between residents and local authorities: if this relationship were strong, the urban greeneries would be distributed equally and efficiently because the public parks would receive public care, and urban residents would keep close watch over and care for the green areas. However, if the link between authorities and residents is broken, the green areas are confined to private areas, such as gated communities and zones reserved for the wealthy, which in turn contributes to the erosion of the greenbelt due to urban sprawl. In short, governance is the balancing force among all other urban issues, and transportation is considered to be the second driver of these issues. Figure 7 illustrates governance as the core issue, which is associated with transportation, outlining how concern with these two issues may propel SUD.

Figure 7. Governance (G) as the major coordinator of urban issues

ACKNOWLEDGEMENTS

This research was supported by a grant (17RDRP-B076564-04) from Regional Development Research Program funded by Ministry of Land, Infrastructure and Transport of Korean government.
