INTRODUCTION

The world population and global economy are increasing and increasing, requiring more and more energy resources to support. These requirements include fossil fuel (coal, oil, natural gas, etc.), nuclear fuel (uranium dioxide, molten plutonium, uranium nitride, etc.), and renewable resources (biomass, hydropower, solar energy, geothermal energy, wind power, wave power, tidal power, etc.).

At the same time of providing a huge amount of energy to the world population and global economy, the energy resources themselves also release a great amount of emissions to the environment the world people live in. These emissions may include gaseous pollutants (e. g. SO_x, NO_x, CO, CO₂, CH₄, etc.) and ash compositions (e. g. Al₂O₃, CaO, Fe₂O₃, K₂O, MgO, MnO, Na₂O, P₂O₅, SO₃, SiO₂, TiO₂, etc.). These emissions would cause some effects on the environment. For example, the released CO₂ would absorb infrared rays from the sun and result in greenhouse effects, which would cause global warming and melt glaciers. The released NO₂ and SO₂ would react with water in air and form acid rain, which would kill the plants and fish on the earth. The emitted ash would become very small particles and fly into air, which would impair the lungs of people and pollute the water in rivers. These impacts seriously deteriorate the environment for the world population and in return they cause heavy burden on the global economy. Sustainability is therefore becoming more and more concerned, especially when the haze in China becomes heavier and heavier and the global environment becomes worse and worse.

Exergy is an important tool for measuring the maximum amount of obtainable work (Szargut, 1980; Rosen and Dincer, 1997; Dincer, 2002; Rosen, 2009a), it has been widely used to evaluate the energy qualities of natural resources (Wall et al., 1994; Chen et al., 2006; Chen and Chen, 2007; Dai and Chen, 2010). With extensions, exergy is also developed to study labor (Sciubba, 2001; Jahangir et al., 2016), population (Sciubba and Zullo, 2013), capital (Sciubba, 2001; Rosen and Dincer, 2003; Sciubba, 2003; Colombo et al., 2015), and ecology (Ukidwe and Bakshi, 2007; Jiang and Chen, 2011; Chen et al., 2014; Dai et al., 2014).

Some researchers ever addressed/studied sustainability (sustainable development) from the viewpoint of exergy. Rosen and Dincer (2001) proposed that exergy can be used as the confluence of energy, environment, and sustainable development. Wall and Gong (2001) recommended using stored exergy as an ecological indicator for sustainable development. Sciubba and Zullo (2011) adopted thermodynamic function exergy to correlate sustainability and thermodynamics. Koroneos et al. (2012) developed an exergy indicator for measuring sustainability through establishing a relationship between exergy content and environmental impact of energy resources. Dincer and Rosen (2005) studied the relationship between exergy and sustainability of a process. Stougie and van der Kooi (2012) studied exergy and sustainability by addressing exergy loss as a qualitative measure of environmental effects. Wu et al. (2015) used cosmic exergy to assess the sustainability of biogas systems. Chen et al. used extended-exergy analysis to study the sustainability of Chinese societal system (Chen and Chen, 2009) and Chinese biogas project (Yang and Chen, 2014). Dincer and Naterer (2010) studied the sustainability index (SI) of an air-water heat pump through assessing exergy efficiency. Caliskan (2014) studied the sustainability index of a building heating system with a combi-boiler based on exergy efficiency. Whiting et al. (2017) evaluated the sustainability of fossil fuels through focusing on the exergy replacement cost methodology. Generally, these studies mainly concentrated on the energy resources, environment problems, or exergy efficiency.

Fuel (e. g. coal, oil, natural gas, biomass, etc.) is a very important energy resource, and it is quite different from the other energy resources like hydropower, solar energy, geothermal energy, wind power, wave power, and tidal power which mainly supply energy to the society whereas release no pollutants to the environment. Fuel, on the other hand, not only supplies energy to the society but also releases emissions to the environment. A comprehensive understanding of the sustainability of fuel from the viewpoint of exergy is still needed.

SUSTAINABILITY AND FUEL

Statement for Sustainability

There are various statements for sustainability or sustainable development. Some of the statements are presented in this section.

The IUCN (International Union for the Conservation of Nature and Natural Resources) statement presented in the World Conservation Strategy (WCS) in 1980 (IUCN, 1980): the overall aim of achieving sustainable development through the conservation of living resources.

The WCED (World Commission on Environment and Development) statement or Brundtland Commission Report in 1987 (WCED, 1987): sustainable development is development that meets the needs of the present without compromising the ability of future generations to meet their own needs.

The statement presented in the Encyclopedia of Life Support Systems (EOLSS, 2002): the wise use of resources through critical attention to policy, social, economic, technological, and ecological management of natural and human engineered capital so as to promote innovations that assure a higher degree of human needs fulfillment, or life support, across all regions of the world, while at the same time ensuring intergenerational equity.

The statement adopted by Wikipedia, the free encyclopedia (Wikipedia, 2017): sustainability is the endurance of systems and processes.

Among the various statements, the WCED statement (also Brundtland Commission Report) is the most popular and often cited definition. The popularity is validated by the World Bank, the World Resources Institute, the World Wildlife Fund, the Worldwatch Institute, the Global Tomorrow Coalition, the International Institute for Environment and Development, the US Agency for International Development, the Canadian and Swedish International Development Agencies, etc. On November 18, 1992, the Rio de Janeiro (Brazil) conference gave the WCED statement a global mission status through the UN Conference on Environment and Development (UNCED).

Even for the same WCED statement (Brundtland Commission Report), there are numerous understandings and interpretations. Up to now, 169 targets, 17 goals, and 304 indicators have been proposed to lead, evaluate, or measure sustainability (Wikipedia, 2017). Generally, sustainability encompasses several perspectives or pillars. Most of the scholars prefer that sustainability is a triangle of economic sustainability, environmental sustainability, and social sustainability which is shown in Figure 1 (Rosen, 2009b; Romero and Linares, 2014; Bilgen and Sarıkaya, 2015; Rosen, 2017 a). Dincer and Rosen (2005) furthered to state that sustainable development involves four key factors: environmental sustainability, economic sustainability, social sustainability, and resource/energy sustainability (Figure 2). Rosen (2017b) furthered to state that sustainable development is a multidisciplinary concept involving environment, ecology, sociology, economy, science, and engineering. Generally, sustainable development involves economic sustainability, social sustainability, and environmental sustainability, and all of them link to energy and resources sustainability, since all of these are strongly interlinked (Dincer and Rosen, 2005; Romero and Linares, 2014) and energy/resource sustainability is of great importance to the overall sustainability (Rosen, 2009b). Energy/resource sustainability is therefore focused on in the following sections.

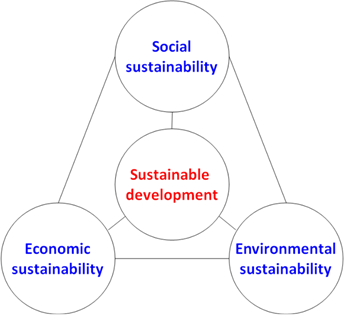

Figure 1. Sustainability triangle (Rosen, 2009b; Romero and Linares, 2014; Bilgen and Sarıkaya, 2015; Rosen, 2017a)

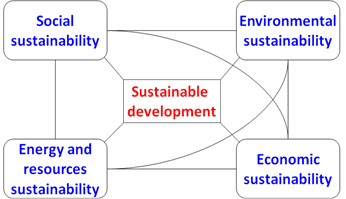

Figure 2. Four key factors involved in sustainable development (Dincer and Rosen, 2005)

Sustainability and Fuel

World population (social sustainability) and global economy (economic sustainability) are dependent on energy. Figure 3 shows the world population, global GDP, and world energy consumption during the years of 2006-2015. As the world population increased monotonically in the range of 6.52-7.35 billion with an increase rate of 12.73% (FAO, 2017) and the global GDP (gross domestic product) fluctuated in the range of 51.04-77.83 trillion U.S. dollars with an increase rate of 52.49% during the years of 2006-2015 (The World Bank, 2017; Statista, 2017), the world primary energy consumption nearly increased monotonically in the range of 11.27-13.15 ×10³ Mtoe (million tonnes oil equivalent) with an increase rate of 16.68% during the same period (Statistical Review of World Energy, 2017). This means that social sustainability and economic sustainability are significantly dependent on energy sustainability.

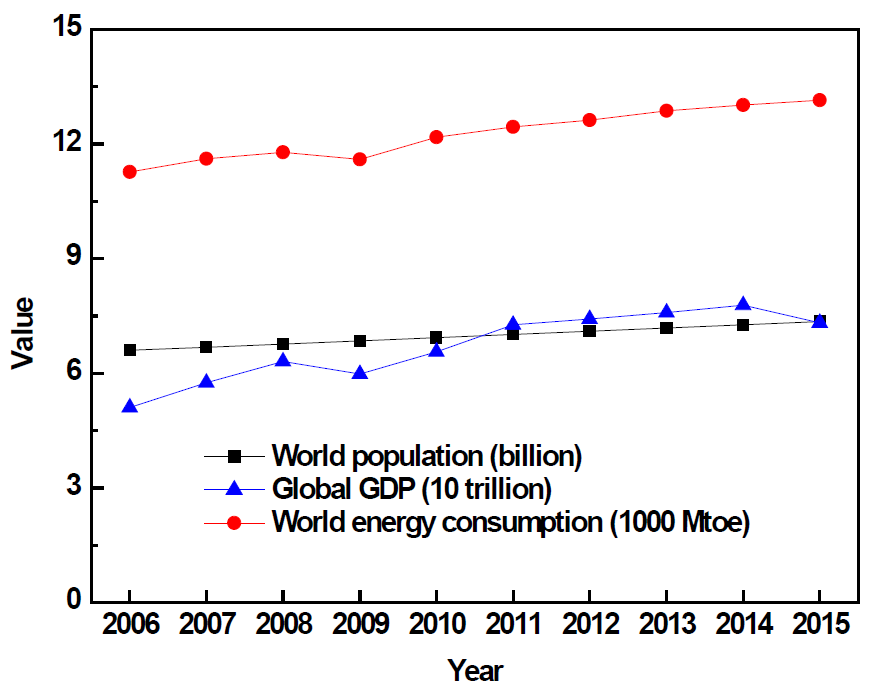

Figure 3. World population, global GDP, and world energy consumption during 2006-2015 (FAO, 2017; The World Bank, 2017; Statista, 2017; Statistical Review of World Energy, 2017)

Figure 4 shows the world energy production of fossil fuels (coal, oil, and natural gas) during the years of 2006-2015 (Statistical Review of World Energy, 2017). The world production of fossil fuels nearly increased monotonically in the range of 9.76-11.39 ×10³ Mtoe with an increase rate of 16.70%. These were 85.68%-87.81% of world primary energy consumption (11.27-13.15 ×10³ Mtoe), indicating that the fossil fuels contributed significantly to the world primary energy consumption. Specifically, the world energy production of fossil fuels was contributed by coal, oil, and natural gas which varied in the ranges of 3.19-3.83 ×10³ Mtoe, 3.96-4.36 ×10³ Mt, and 2.61-3.20 ×10³ Mtoe with increase rates of 20.06%, 10.10%, and 22.61% during the years of 2006-2015, respectively.

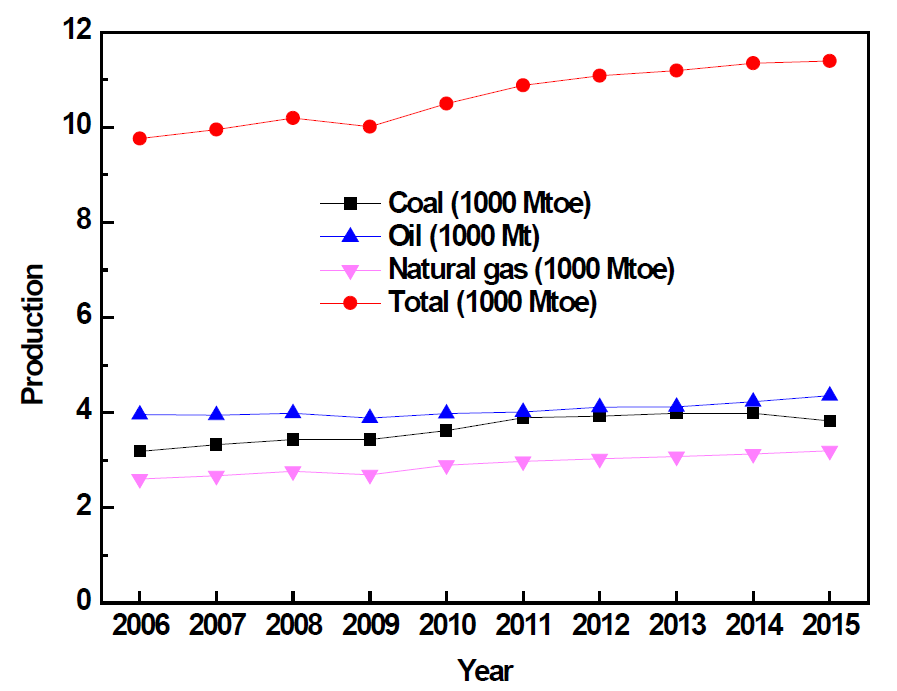

Figure 4. World energy production during 2006-2015 (Statistical Review of World Energy, 2017)

The above data collectively indicate that social sustainability and economic sustainability are significantly dependent on energy/fuel sustainability. When we talk about sustainable development, sustainable energy/fuel resources should be available, and they should be efficiently used (Rosen, 2002; Dincer and Rosen, 2005; Kanoglu et al., 2009; Bilgen and Sarıkaya, 2015).

ENERGY FROM FUEL THROUGH EXERGY

Statement for Exergy

There are some modern statements for exergy. Szargut et al. (1988) defined: exergy is the amount of work obtainable when some matter is brought to a state of thermodynamic equilibrium with the common components of natural surroundings by means of reversible processes, involving interactions only with the above mentioned components of nature. They also defined: exergy is the shaft work or electrical energy necessary to produce a material in its specified state from materials common in the environment in a reversible way, heat being exchanged only with the environment at temperature T₀.

Similarly, Sciubba and Wall (2004) defined exergy as: the maximum theoretical useful work obtained if a system ‘S’ is brought into thermodynamic equilibrium with the environment by means of processes in which ‘S’ interacts only with this environment.

According to the above statements, the exergy of an energy/fuel resource is the amount of maximum obtainable work when the energy/fuel resource is brought to a state of thermodynamic equilibrium with the common components of natural surroundings (environmental condition) by means of reversible processes, involving interactions only with the components (mentioned above) of natural surroundings (Rosen and Dincer, 1997; Rosen, 2002; Dincer and Rosen, 2005; Rosen et al., 2008). It measures not only how far the energy/fuel resource deviates from the state of equilibrium with its environment (Wall, 1986), but also measures the quality of the energy/fuel resource (Zhang et al., 2013; Zhang et al., 2015a; Zhang et al., 2016a). Therefore, exergy is widely used to evaluate the energy quality of an energy/fuel resource.

Exergy of Fuel

Generally, there are four forms of exergy for a fuel material: kinetic exergy, potential exergy, physical exergy, and chemical exergy (Figure 5). The kinetic exergy is associated with relative motion difference between the material and its surroundings. The potential exergy is associated with the gravitational or electromagnetic difference. The physical exergy is from differences in the pressures and temperatures, and the chemical exergy is from differences in the components and concentrations (Szargut, 2005). Since the kinetic exergy and potential exergy generally account for less than 0.001% of the total exergy of a material, they can therefore be neglected (Zhang et al., 2015b). The physical exergy of a material attributed by pressure and temperature differences is usually also neglected because the material in environmental condition is in equilibrium with the pressure and temperature of the environment. The chemical exergy of a fuel, therefore, appears to be a more representative index than the total exergy of the fuel (Rosen and Dincer, 1999; Crane et al., 1992).

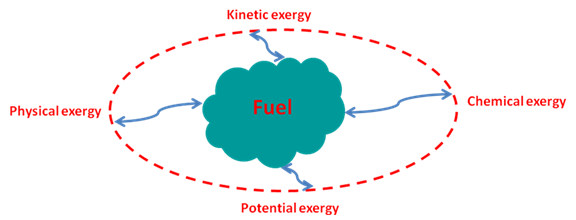

Figure 5. Four forms of exergy for a fuel

According to the general definition of exergy, the (chemical) exergy of a fuel can be calculated from a multi-process thermodynamic model which is also a comprehensive thermodynamic model (Figure 6). The multi-process thermodynamic model includes three sub-process models: (a) the oxygen separation process, (b) the chemical reaction process, and (c) the products diffusion process. The oxygen separation process means oxygen (O₂) is separated from the environment at the environmental sate (P₀, T₀), and the exergy involved is oxygen separation exergy. The chemical reaction process requires the fuel reacts with oxygen at the environmental sate (P₀, T₀), and the products are the environmental products which are the environmental compositions. The exergy involved in this process is called chemical reaction exergy. The products diffusion process means the environmental products diffuse to the environment and get equilibrium with the environment at the environmental sate (P₀, T₀). The exergy involved in this process is defined as products diffusion exergy. The (chemical) exergy of a fuel is then the sum of the oxygen separation exergy, chemical reaction exergy, and products diffusion exergy.

This multi-process thermodynamic model would yield accurate results whereas the calculation process is a little complex. Recently, many authors dedicated to working on the estimation of exergy for fuels. The related work can be accessed everywhere (Szargut et al., 1988; Szargut, 2005; Zhang et al., 2016b; Li et al., 2017).

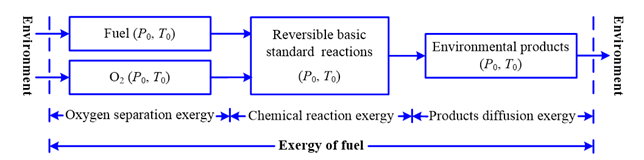

Figure 6. A comprehensive thermodynamic model for the (chemical) exergy of fuel

ENVIRONMENTAL IMPACT FROM FUEL THROUGH EXERGY

Emissions from Fuel

At the same time of providing a huge amount of energy to the social sustainability and economic sustainability, the fuel itself also releases a great amount of emissions to the environment the world people live in. The energy contained in a fuel is mainly its chemical energy, and this energy can be obtained when the fuel is combusted (usually through combustion). This process can be illustrated by Figure 7.

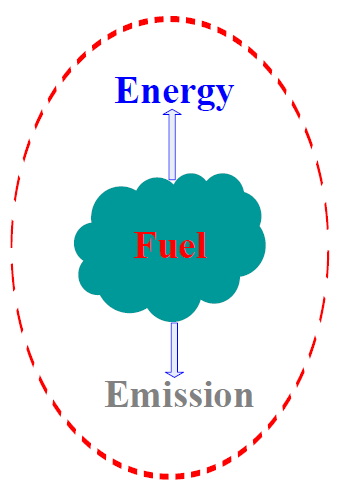

Figure 7. Energy release process of fuel

Table 1 shows the emission inventories for some common types of fuels (coal, crude oil, LPG (liquefied petroleum gas), fuel oil, and natural gas). Even for the easily combustible natural gas, SO_x, NO_x, CO, CO₂, and CH₄ may be released when the natural gas is combusted. Usually, these emissions may cause some environmental impacts on the environment, e. g. greenhouse effect, stratospheric ozone depletion, acid precipitation and photochemical smog as shown in Table 2 (Dincer, 2000).

If an ash containing fuel (usually solid fuels like coal and biomass) is used or combusted, the process would release not only gaseous pollutants (SO_x, NO_x, CO, CO₂, CH₄, etc.) but also ash compositions (Al₂O₃, CaO, Fe₂O₃, K₂O, MgO, MnO, Na₂O, P₂O₅, SO₃, SiO₂, TiO₂, etc.). This general process can be illustrated by Figure 8.

Figure 8. Emissions from fuel

Environmental Impact of Emissions

There are numerous methodologies that adopted for assessing the environmental impact of emissions, e. g. Life Cycle Assessment (LCA), Environmental Impact Assessment (EIA), Greenhouse Gas (GHG) methodology, etc. Compared with the Life Cycle Assessment (LCA) and Environmental Impact Assessment (EIA) methodologies which refer to the specific conditions in specific production plants (Jegannathan and Nielsen, 2013) and therefore would be significantly affected (Atilgan and Azapagic, 2015), the Greenhouse Gas (GHG) methodology is indicated as carbon footprint and it is much more intuitive and simpler.

Although the Greenhouse Gas (GHG) methodology can be easily used to assess the environmental impact of a fuel by demonstrating the greenhouse gas emissions of CO₂ and CH₄, the other environmental emissions (e. g. NOx, SO₂, and ash) are not included (Zhang et al., 2017). On the other hand, the Greenhouse Gas (GHG) methodology lacks a uniform reference basis for assessing the environmental impacts of different emissions and it therefore shows difficulties in comparing the environmental impacts of different fuels. For example, if a coal generates a total emission of 1.1 kg of CO₂ and a biofuel generates a total emission of 0.9 kg of SO₂, how can we compare the environmental impacts of these two fuels?

Exergy is the amount of work obtainable when a matter is brought to a state of thermodynamic equilibrium with the uniform environment reference (Szargut, 1980; Rosen and Dincer, 1997; Dincer, 2002; Rosen, 2009b), and it is an effective measure of the potential the matter impacts or changes the environment (Dincer and Rosen, 1998; Utlu and Hepbasli, 2004; Dincer, 2007; Koroneos and Tsarouhis, 2012). Therefore, some researchers suggested that the environmental impacts of emissions are best addressed by considering exergy (Rosen and Dincer, 1997; Dincer, 2000; Midilli and Dincer, 2010; Caliskan, 2015).

Since the kinetic exergy and potential exergy account for less than 0.001% of the total exergy of the emissions, they can therefore be neglected (Zhang et al., 2015 b). The physical exergy of an emission attributed by pressure and temperature differences is usually not significant and its potential environmental impact is limited as the pressure difference between the emission and the environment normally dissipates shortly after the emission enters the environment, and the temperature difference is normally localized near the emission source (Rosen and Dincer, 1999; Ao et al., 2008, Crane et al., 1992). The chemical exergy of emissions, therefore, appears to be a more representative index than their total exergy (Rosen and Dincer, 1999; Crane et al., 1992; Kirova-Yordanova, 2010).

Based on the emissions released from a fuel, the environmental impact of the fuel can be obtained by (Zhang et al., 2017):

where:

The environmental impact of emission gases, PEI_Gas, is given by (Zhang et al., 2017):

where:

The environmental impact of ash, PEI_Ash, is given by (Zhang et al., 2017):

where:

As exergy is defined on a global uniform environment reference basis, the environmental impact of an emission demonstrated by its chemical exergy is therefore also on a universal basis (Figure 9). The methodology presented above overcomes the problem with the Greenhouse Gas (GHG) methodology which lacks a uniform reference basis and it therefore has difficulties in comparing the environmental impacts of different emissions. On the contrary, the methodology presented above can be easily used to assess the environmental impacts of different emissions including gaseous pollutants (SO_x, NO_x, CO, CO₂, CH₄, etc.) and ash compositions (Al₂O₃, CaO, Fe₂O₃, K₂O, MgO, MnO, Na₂O, P₂O₅, SO₃, SiO₂, TiO₂, etc.). However, the universal exergy method also has some limits, e. g. it doesn’t refer to the toxicity or greenhouse effect of an emission.

Figure 9. Universal basis for emissions

Exergy Efficiency

As exergy has a triangle relationship with sustainability, energy, and environment as shown in Figure 10, exergy is best used to evaluate the energy quality of an energy/fuel resource, it at the same time can be used to help benefit the environment.

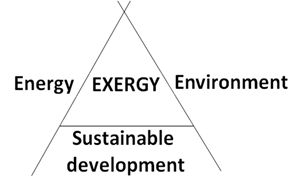

Figure 10. Interdisciplinary triangle covered by exergy (Rosen and Dincer, 2001; Dincer, 2002)

When exergy is used to evaluate the energy quality of a fuel resource, exergy efficiency can be used to assess the fuel convention and utilization processes. Figure 11 shows the relationship between the emissions and sustainability index (SI) of a typical process. To reduce the gaseous pollutants (SO_x, NO_x, CO, CH₄, etc.) from a fuel convention or utilization process, one efficient alternative is to improve the process efficiency which is best evaluated by exergy efficiency (Rosen and Dincer, 2001; Kanoglu et al., 2009; Caliskan, 2014; Bilgen and Sarıkaya, 2015). For a general fuel convention or utilization process, the best way to reduce the environmental impact and increase the fuel sustainability is to improve the exergy efficiency of the process (Figure 12) (Rosen and Dincer, 2001; Rosen et al., 2008; Kanoglu et al., 2009).

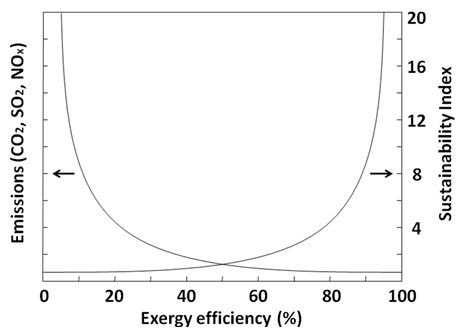

Figure 11. Relationship between the emissions and sustainability index (SI) of a typical process (Rosen et al., 2008)

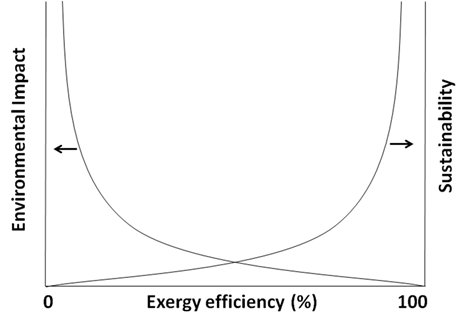

Figure 12. Relationship between the environmental impact and sustainability of a general fuel convention or utilization process (Rosen and Dincer, 2001; Rosen et al., 2008; Kanoglu et al., 2009)

CONCLUSIONS

The sustainability of fuel is important for the sustainability triangle which mainly includes economic sustainability, environmental sustainability, and social sustainability, and it can be understood from a universal exergy basis: (a) higher chemical exergy of fuel, (b) lower chemical exergy of emissions, and (c) higher exergy efficiency of fuel conversion process.

ACKNOWLEDGMENTS

The financial supports from National Natural Science Foundation of China (No. 51606048), Harbin Science and Technology Research Funds for Innovative Talents (Grant No. RC2014QN008009), Fundamental Research Funds for the Central Universities (No. HIT.NSRIF.2015080), and China Scholarship Council (CSC: 201506125122) are acknowledged. The financial support from the Collaborative Innovation Center of Cleaner Coal Power Plant with Poly-generation is also acknowledged.
